木工加工棚搭設規范：

Specification for erection of woodworking shed:

木工加工棚是施工現場內對木工進行拉直、彎曲、焊接等木工加工作業的一個場地。木工加工棚的長和寬，一般會根據木工加工數量和使用機械的多少確定加工棚的大小，一般情況有6*12m、9*12m、18*30m等幾種，可以根據施工實際情況，自行設計長與寬尺寸。

Woodworking shed is a place for woodworking processing operations such as straightening, bending and welding on the construction site. The length and width of the wood processing shed are generally determined according to the number of wood processing and the number of machines used. Generally, there are 6 * 12M, 9 * 12M, 18 * 30m and other types. The length and width can be designed according to the actual construction situation.

木工加工棚工作臺的布置也要合理，根據真實木工加工流程來，還有加工前原材料木工和加工結束后成品的存放，所以木工加工棚的地面應高于施工場地地面30cm，防止雨水浸泡，用腳手管進行搭設時，應有地橫桿和斜撐，以保證加工棚的穩定性。

The layout of the worktable of the woodworking shed should also be reasonable. According to the real woodworking process, as well as the storage of raw materials before processing and finished products after processing, the ground of the woodworking shed should be 30cm higher than the ground of the construction site to prevent rainwater immersion. When erecting with scaffold pipes, there should be ground cross bars and diagonal braces to ensure the stability of the processing shed.

木工加工棚搭建細節：

Construction details of woodworking shed:

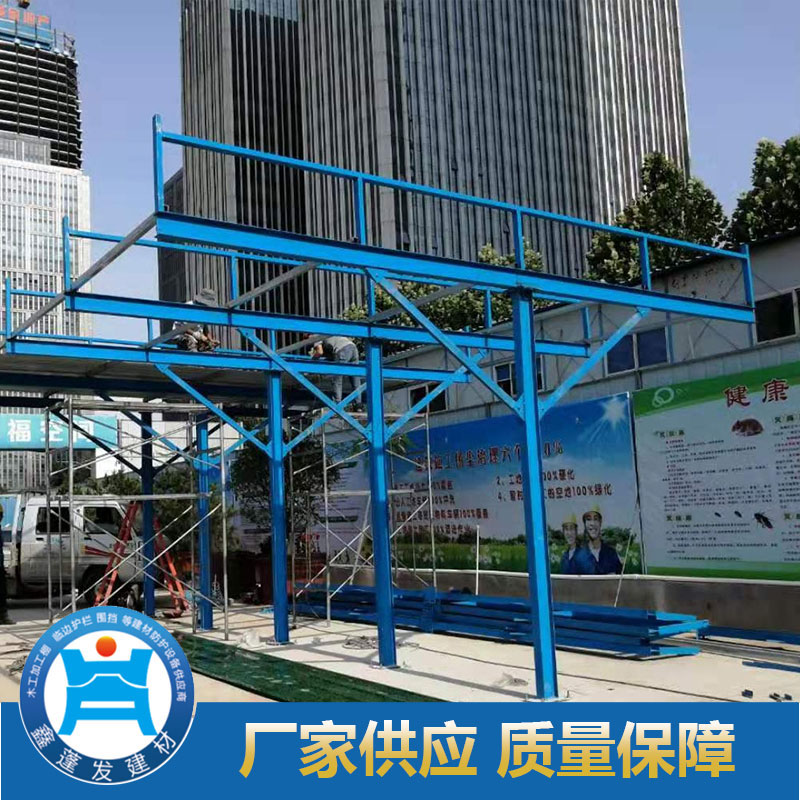

施工現場木工加工棚采用國際標準鋼材制作，在現場利用扣件將多根鋼管扣接搭設成加工棚的整體式鋼結構，再設置斜撐和雙層防砸結構，校驗鋼結構強度是否符合設計要求，后在欄桿上鉤掛標語橫幅，整個木工加工棚施工完畢標準化設計。全拼裝式，快速組裝，拆卸簡單，方便運輸，型材及配件規格可按需求來定制。

The woodworking shed on the construction site is made of international standard steel. Firstly, multiple steel pipes are buckled and erected into an integral steel structure of the processing shed by using fasteners on the site, and then diagonal braces and double-layer anti smashing structures are set to verify whether the strength of the steel structure meets the design requirements. Then, safety slogans and banners are hung on the railings, and the construction of the whole woodworking shed is standardized. Full assembly, quick assembly, simple disassembly, convenient transportation, profile and accessories specifications can be customized according to demand.

1.一般情況下，木工加工棚都在塔吊的吊運范圍內，否則木工吊動不方便，同時必須設置雙層硬質防護，棚的具體尺寸要根據實際情況來定。

1. Generally, the woodworking shed is within the lifting range of the tower crane, otherwise it is inconvenient for the woodworking to lift. At the same time, double-layer hard protection must be set, and the specific size of the shed should be determined according to the actual situation.

2.防護棚的頂有二層的，上面的隔層上鋪模板，下面一層鋪二層竹芭片子。

2. If there are two layers on the top of the protective shed, the upper compartment is paved with formwork, and the lower layer is paved with two layers of bamboo sheets.

3.工具式木工加工棚需在醒目處掛操作規程圖牌和宣傳用語的橫幅。

3. The tool type woodworking shed shall hang the operation specification drawing board and the banner of safety publicity language at the eye-catching place.

4.加工車間地面需硬化，宜選用砼地面。

4. The ground of the processing workshop needs to be hardened, and the concrete ground should be selected.

5.內部有滅火器、木工加工設備、有照明系統

5. There are fire extinguishers, woodworking equipment and lighting system inside

6.加工車間地面需硬化，宜選用砼地面。

6. The ground of the processing workshop needs to be hardened, and the concrete ground should be selected.

7. 南方地區，如遇臺風應采取防風措施，可設置纜風繩。

7. In the south, in case of typhoon, windproof measures shall be taken, and wind ropes can be set.

建筑工地防護棚在工地中占據著不可或缺的地位，不僅是能夠進行施工的重要保障，也是保護工地施工人員的基石，因此木工加工棚的搭建是建筑工作的重中之重。更多相關內容來網站www.btmj.net咨詢吧！

The construction site protective shed occupies an indispensable position in the construction site. It is not only an important guarantee for safe construction, but also the cornerstone to protect the safety of construction workers. Therefore, the construction of woodworking shed is the top priority of construction work. For more information, please visit www.btmj.net Com consultation!
